A NavBridge connection can be established in Consignly to automatically export consignments and shipment information to NavBridge.
Once configured, consignments can be pushed to NavBridge based on predefined status and action rules.
Getting Started
To establish a connection:
- Open the Consignly App Directory and add the NavBridge app.
- Enter your NavBridge API Key.
- Select the integration type: Full Integration or Partial Integration.
Creating a Connection to NavBridge from Consignly
Integration Types
Full Integration
- Creates shipments in NavBridge.
- Includes order and line-item information.
- Recommended for organisations requiring complete shipment visibility.
Partial Integration
- Creates orders in NavBridge without line items.
- Suitable when only order-level information is required.
Connection Management
Once the connection is established, navigate to the Connection Detail to review and manage the integration.
The NavBridge Connection card displays:
- Consignly User
- Date Created
- API Key
- Edit Connection to update the integration type.
- Remove Connection to disconnect NavBridge from Consignly.

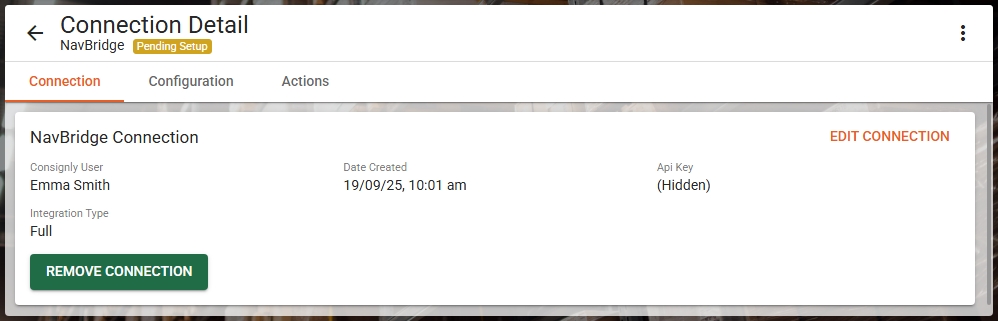

Connection Detail for a NavBridge connection
Configuration
All connection settings are managed from the Configuration tab.
Order Settings
- Map a Consignly Dynamic Particular to the NavBridge Order Number.
- Optionally map Consignly Dynamic Particulars to:
- Customer References
- Receiver References
Configuring Order Settings for a NavBridge connection

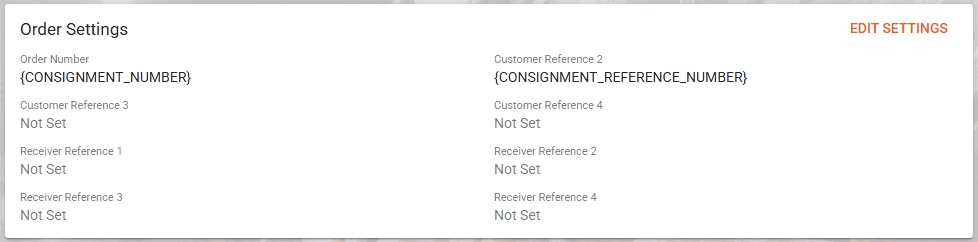

Order Settings defined for a NavBridge connection
Client Partners
To configure:
- Select Edit Clients.
- Choose the matching NavBridge customer for each Consignly client.
- Save the mapping.

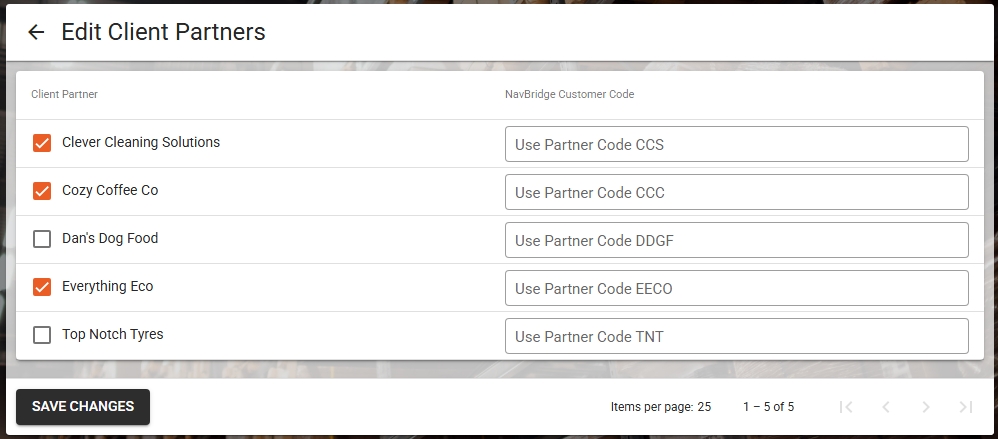

Mapping Consignly Client Partners to their corresponding NavBridge Customer Codes
Package Types
To configure:
- Enable the package type using the checkbox.
- Select the matching NavBridge package type from the dropdown list.

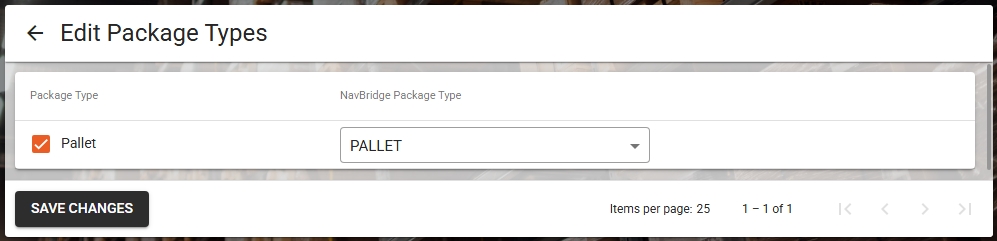

Mapping the Consignly Package Type to its corresponding NavBridge Package Type
Unit Types
Map Consignly unit types to the appropriate NavBridge package or unit type to ensure shipment information is transferred correctly.

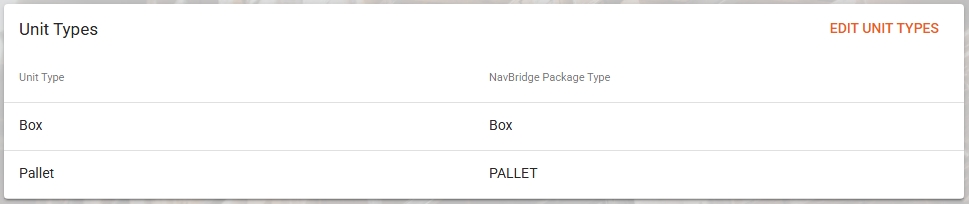

Unit Types defined for a NavBridge connection
Actions
To configure an export action:
- Open the Create Order action.
- Enable the action by selecting Enable Action.
- Select the Client Partners that should use the integration.
- Define the Consignment Status that triggers the export.
- Select the Carrier Partners included in the action.
Creating an Export Action for a NavBridge connection
Exporting to NavBridge
Within a consignment, the Connections tab displays all connected applications. When a NavBridge integration is active and the consignment satisfies the configured requirements:
- NavBridge will appear in the Connected Apps list.
- Successful exports are identified by an Export Success badge.
Troubleshooting
If consignments are not exporting to NavBridge:
- Verify the API Key is valid.
- Confirm Client Partner mappings have been configured.
- Ensure Package Type and Unit Type mappings are complete.
- Check that the export action is enabled.
- Verify the consignment has reached the configured trigger status.
